Default Battery Inserting / Removing - HTC Thunderbolt ADR6400

Battery Inserting / Removing - HTC Thunderbolt ADR6400

Inserting the battery
Removing the battery


Inserting the battery

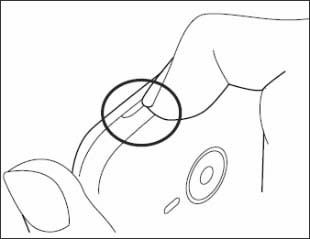

  1. Remove the back cover. Securely holding the phone with the display facing away, gently pull the cover open from the gap at the top of the phone.

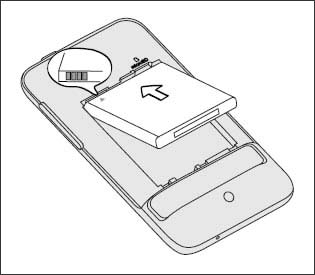

  2. Align the battery contacts with the contacts inside the battery compartment. Insert the contact side of the battery first then gently push the battery into place.

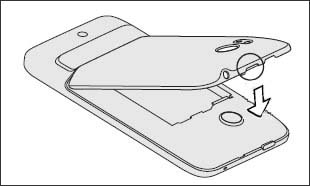

  3. Replace the back cover.


Top


Removing the battery
  1. Ensure the phone is powered down.
  2. Remove the back cover. Securely holding the phone with the display facing away, gently pull the cover open from the gap at the top of the phone.

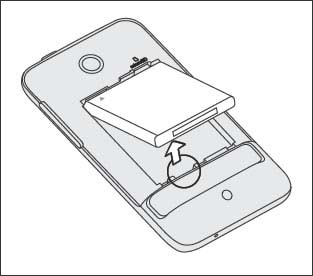

  3. Lift out the battery from the notch at the lower end of the of the battery slot.
